Used Machinery

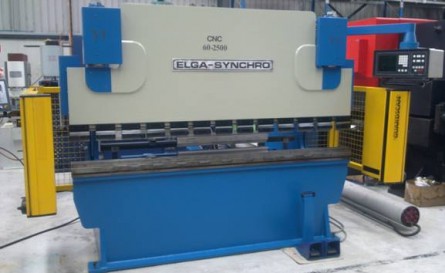

ELGA SYNCHRO CNC HYDRAULIC PRESSBRAKE 60/25

$39,000 + gst

Capacity: 2550 mm x 60 Tonnes (CNC 4 Axis – Y1, Y2, X and R)

Serial Number: P 2219. Year Of Manufacture: 1989

  • Heavy duty machine construction from high quality steel
  • Twin cylinder CNC synchronised hydraulic down-stroking
  • Delem DA42 multi axis 2D colour graphic controller for Y1, Y2 levelling, depth control and auxiliary axes control
  • Bend angle programming and correction, depth accuracy within 0.01 mm
  • Linear scales mounted on independent side frames (deflection free)
  • CNC X and R axis back gauge with recirculating ball screws and two flip type gauge finger assemblies
  • Programmable fast approach / working speed change over point
  • Programmable open day light
  • Programmable tonnage control
  • Control station with dual foot pedal
  • Low noise pump and hydraulic system
  • Euro Style top tool holders
  • Lower table with mechanical crowning adjustment
  • Full tank of hydraulic oil
  • Standard colour: cream and blue
  • Machine guarding: Vertical light curtains 300mm from top tool, mounted upon powder coated hinged side fences plus rear interlocked gate

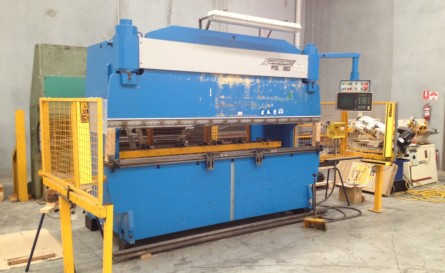

GASPARINI PS 60 HYDRAULIC PRESSBRAKE

$00,000 + gst

Capacity: 75 Tonnes x 3000 more info?

Serial Number: ?????. Year Of Manufacture: ????

  • Cybelec CNC controller
  • Fully Serviced and ready to go

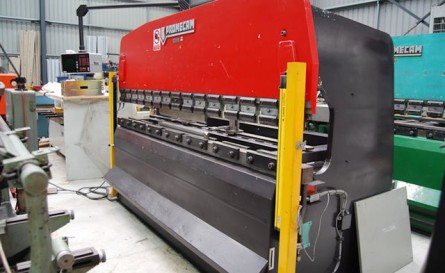

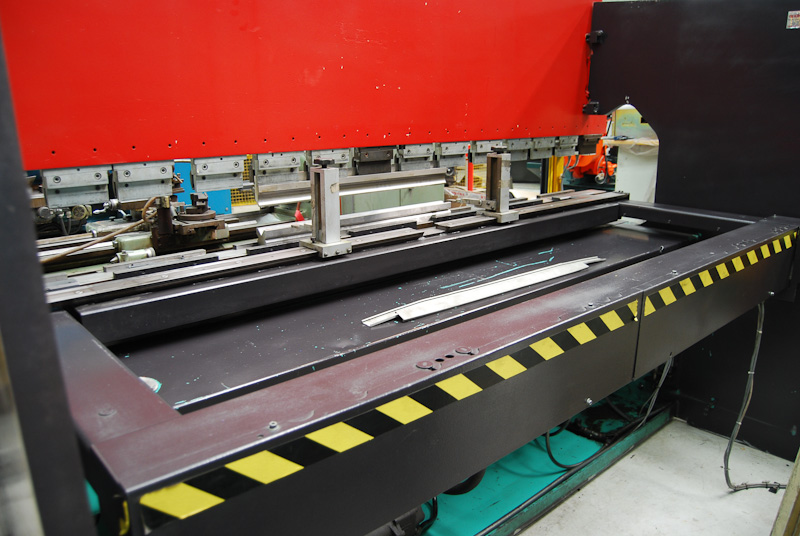

AMADA PROMECAM 75 TONS X 3000HYDRAULIC PRESSBRAKE

 $00,000 + gst

Capacity: 75 Tonnes x 3000 more info?

Serial Number: ?????. Year Of Manufacture: ????

  • Cybelec CNC controller
  • Fully Serviced and ready to go
